Mini Nano Core

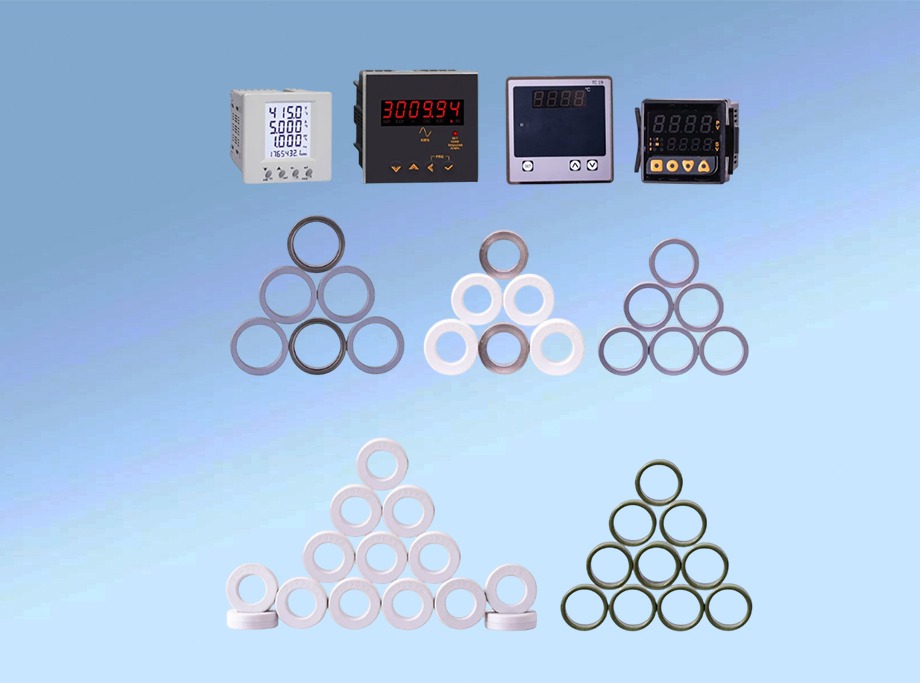

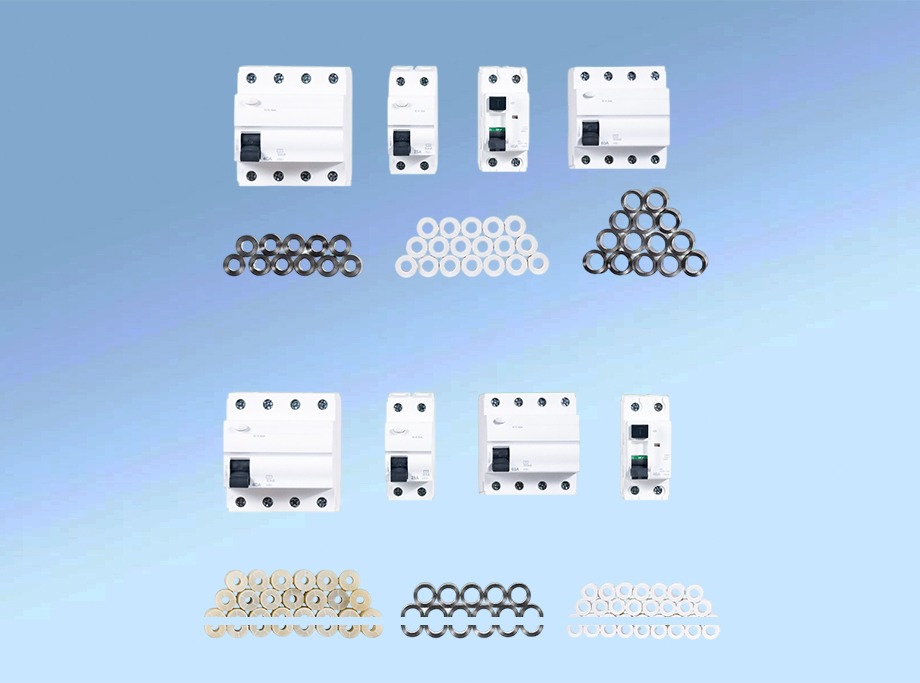

Vikano Miniature Cores :
SR. NO PART NO CORE OD MM CORE ID MM CORE HT MM CASE OD MM CASE ID MM CASE HT MM Download PDF
1 24-11.5-22 24.00 11.50 22.00 27.90 9.80 27.80
2 13-9.5-5 13.00 9.50 5.00 14.40 8.30 6.40
3 13.2-9.6-10 13.20 9.60 10.00 15.10 8.20 11.80
4 16.5-12.5-5 16.50 12.5 5 18.30 10.40 6.20
5 19-14-8 19.00 14.00 8.00 21.50 12.20 10.00
6 14.4-9.8-10 14.40 9.8 10.00 15.90 8.30 12.00
7 17.8-13-5 17.8 13.00 5.00 19.60 11.40 6.40
8 20-14-10 20.00 14.00 10.00 22.60 12.10 12.00
9 21.5-13.2-10 21.50 13.20 10.00 24.00 11.50 12.00
10 21-16-10 21.00 16.00 10.00 23.60 14.00 12.20
11 22-15-15 22.00 15.00 15.00 24.80 12.40 18.80
12 22-16-10 22.00 16.00 10.00 24.50 14.00 12.20
13 22-17-10 22.00 17.00 10.00 24.60 15.40 12.00
14 24-17-20 24.00 17.00 20.00 26.90 14.80 23.00
15 25-19-10 25.00 19.00 10.00 27.50 17.20 12.50
16 27-19-8 27.00 19.00 8.00 29.20 16.60 10.00
17 24-18-10 24.00 18.00 10.00 26.80 16.20 12.40
18 28-19-10 28.00 19.00 10.00 30.00 17.00 12.00
19 30-20-8 30.00 20.00 8.00 32.50 18.20 10.00
20 29-21-6.5 29.00 21.00 6.50 31.00 19.00 8.50
21 32-20-18 32.00 20.00 18.00 34.00 18.00 20.50
22 37.6-32-6.5 37.60 32.00 6.50 40.00 28.70 8.40
23 24-17-8 24.00 17.00 8.00 26.40 15.10 9.90
24 38.1-30.4-6.5 38.10 30.40 6.50 40.00 28.70 8.50
25 20-14-5 20.00 14.00 5.00 22.60 12.50 6.50
26 32.8-25-6.5 32.80 25.00 6.50 34.30 23.00 8.20

Mounting, Installation & Operating Instructions :
  • Can be used for both-Horizontal, Tilted and Vertical Type Mounting.
  • Suitable for enclosed mounting applications only.
  • Suitable Mounting Stand and Support Plate to be made for all kinds of mounting.
  • Copper Wire for winding to be of suitable guage and flexible.
  • Wire Wound Core must be well-fastened on Mounting Apparatus/Fixture.
  • Area of application must be Dust-Free for optimum performance.
  • For Oil-immersed application, use only IEC-60296/ASTM D 3455-02 compatible oil.
Envinronmental Conditions & Storage/Handling Instructions
  • Non-Hazardous Material.
  • Item must be stored in a Cool and Well-Ventilated Area.
  • Keep Away from Direct Sunlight or Exposure to Moisture.
  • Item must be stored in its Original Packaging only.
  • Storage Temperature: 20°C~45°C.
  • Humidity: Average < 95%.
  • Delicate/Fragile Material. To be Handled with utmost Care.
  • Do not mishandle/drop the Material. It can result in Core Failures.
  • Use Standard P-U/Rubber/ or Suitable Gloves having reasonably good grip while Handling the material/unpacking/etc.
  • Material is sealed inside Protective Housing for optimum performance. Never attempt to open the Housing.
Mean Life Expectancy
  • Upto 130,000 Hours or 15 years, whichever is lesser.
  • At the end of Service Life, product is to be de-energized and disconnected from its application and separately returned to Vikarsh in appropriately-packed condition for re-processing within established standards.
  • For Oil-immersed applications, product must be well-dried before being packed for return.
Safety
  • Disconnect the Nanocrystalline Core from the Electrical Circuit before Handling and Inspection.
  • Insulated Hand-gloves and necessary Protective Equipments must be be worn for Inspection.
